The X-Effects LED Production Rental Kit features an X-Effects LED HO projector to create dynamic lighting effects for film & TV, stage productions, and live events. The fixture is designed to produce vivid water, fire, and other lighting effects by projecting light through a pair of off-set, overlapping gobos.
Capable of throws up to 65ft (20m), the 90W Rosco X-Effects LED HO projector is engineered to produce an amazing amount of output from a compact package. The X-Effects LED Production Rental Kit ships with either one 5500K cool white or one color-mixing RGBW model, and all four available lens options.
The X-Effects LED Production Rental Kit offers versatile solutions for both theater stages and film sets. Its ease of integration into existing setups makes it an ideal choice for creating captivating visual effects and enhancing storytelling in live performances or film productions.
Updated kit with more gobos coming soon!

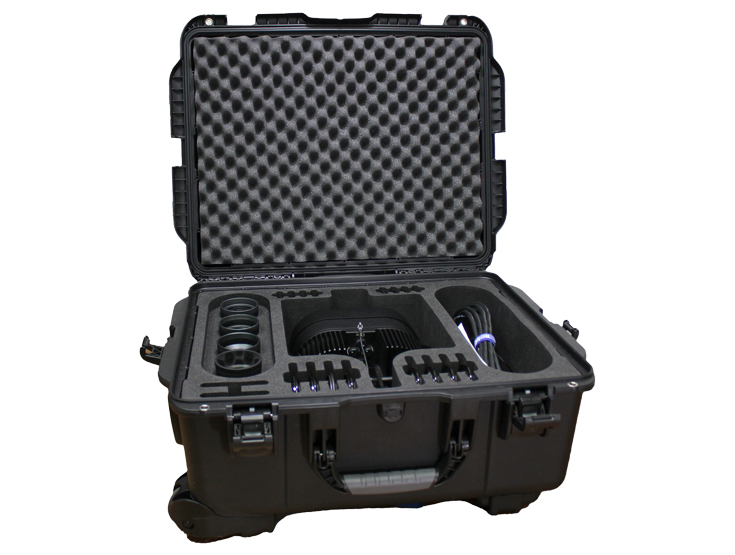

The X-Effects LED Production Rental Kit ships with a ready-to-use projector and various accessories, including multiple lenses and gobos. Open the kit and start creating dynamic lighting effects in minutes!
The X-Effects LED HO Projectors feature 3,000 lumens of output of 90 watts of power. The X-Effects LED HO can maintain over 100 lumens at 65ft+ (20m+).
The X-Effects LED Projectors feature on-board controls of the fixture’s output, as well as the speed and direction of both Effects Glass Gobos. The fixtures can also be controlled via DMX and are RDM compatible.
The X-Effects LED Projectors are IP65-rated for indoor or outdoor use, offering the versatility to create dynamic lighting effects anywhere they are required.
What’s In The Kit:
*Kit includes either 5500K or RGBW
Kit Specifications:
Case Dimensions: 25.6” x 20” x 11.8” (650mm x 508mm x 300mm)
Kit Weight: 39.68 lbs. (18kg)
X-Effects LED Projector Fixture Specifications:
Input Voltage: 100-240VAC
Power Consumption: 90 Watts at maximum output
Output: 3000 lumens
LED Array: 5500K or RGBW (White LED = 5500K)
Lumen Maintenance: 50,000 hours at 45C (LM-79-08)
Power Connection: 20ft (6m) cable with multiple power adaptors for global use and DMX In and DMX Out connectors
Data: DMX512 In/Out via UTL Connector on luminaire
X-Effects LED 5500K – 5 Control Channels
X-Effects LED RGBW – 8 Control Channels
RDM compatible
Operating Temp.: -13° to 113° F (-20° to 45° C)
Environment: IP65 rated
Housing: Powder Coated Aluminum
Approvals: ETL / UL Standards #1573 and # 8750
cETL / CSA C22.2 #166
CE
Dimensions: 5.5”L x 10.1”W x 5.8”H (14.2cm x 25.8cm x 16.7cm)
Weight: 13 lbs (5.8 kg)
Product Numbers
2971K0055001 - X-Effects® LED Production Rental Kit 5500K
2971K00RGBW1 - X-Effects® LED Production Rental Kit RGBW
X-Effects Recipe Video Collection
X-Effects® LED HO Projector 5500K - IES Files
X-Effects® LED HO Projector RGBW - IES Files
X-Effects® LED HO Projector - DWG File
X-Effects® LED HO Projector - SAT File
Please complete this form
The X-Effects LED Lens Cover accessory helps prevent pooling of water in the lens for outdoor installations where an X-Effects LED lens is mounted facing upwards.
Download the X-Effects® LED Lens Cover Installation Instructions:
Download the X-Effects® LED Lens Cover Installation Instructions
Product Numbers:
This X-Effects LED Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory can be installed in a variety of ways along the magnetic ring around the static gobo position, allowing the fixture’s beam to be cut from the top, bottom and/or both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Product Numbers:
Replacement Effects Glass Gobo for the X-Effects LED Projector.
Note – the fixture ships with two of these gobos. This single-gobo accessory is available to replace gobos that may break or become lost during use.
Product Numbers:
Rosco’s textured-dichroic ColorWaves gobos can create unique, color-blended lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
Rosco’s clear, textured Image Glass gobos can create unique lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
