Image Spot^® Mini Bundle

Brilliant Imaging.

Resources

Where to buy

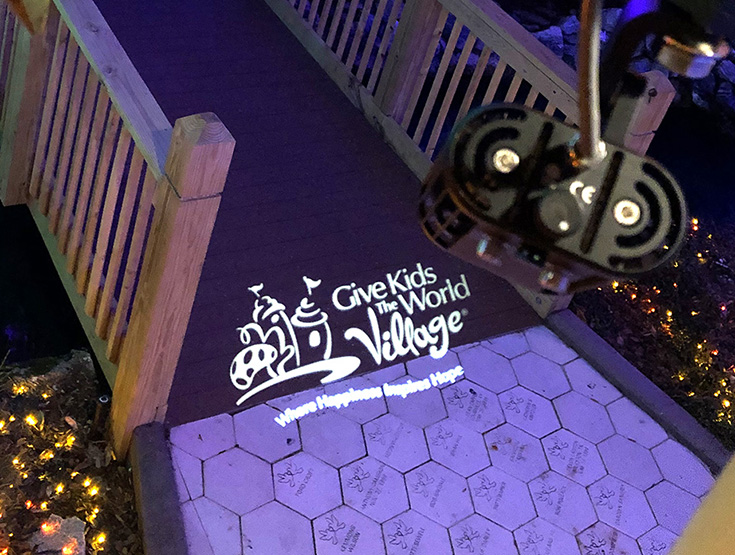

The Image Spot Mini bundle offers everything you need to bring gobo projections to life. This package includes one Image Spot Mini projector, one lens of your choice, and a dimmable driver, providing a complete solution for creating crisp, vibrant image projections in themed environments, retail displays, hospitality, museums, attractions, and architectural installations.

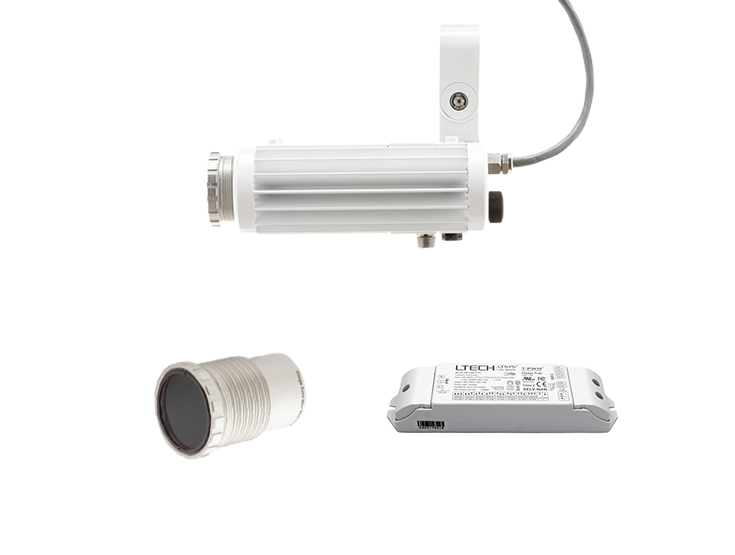

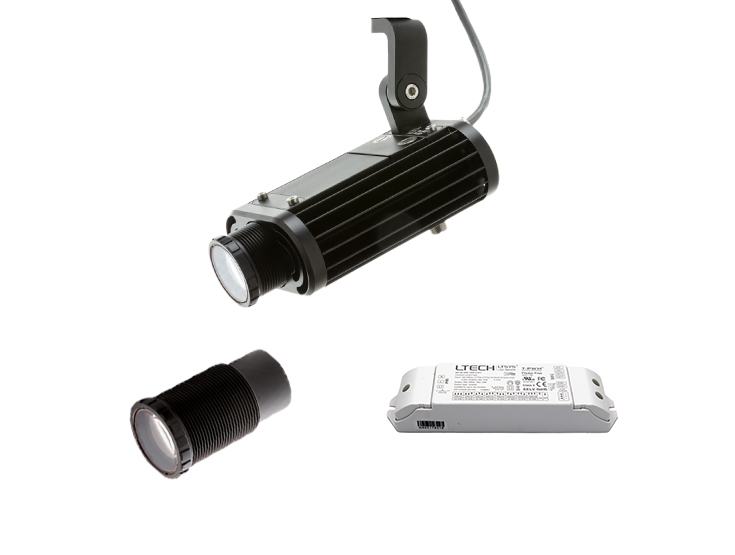

Bundle Includes:

1 × Image Spot Mini Projector (3000K or 5500K)

1 × Lens of Your Choice (11°, 17°, or 25°)

1 × Dimmable Driver (Onboard Potentiometer, 0-10V, DMX, or DALI)

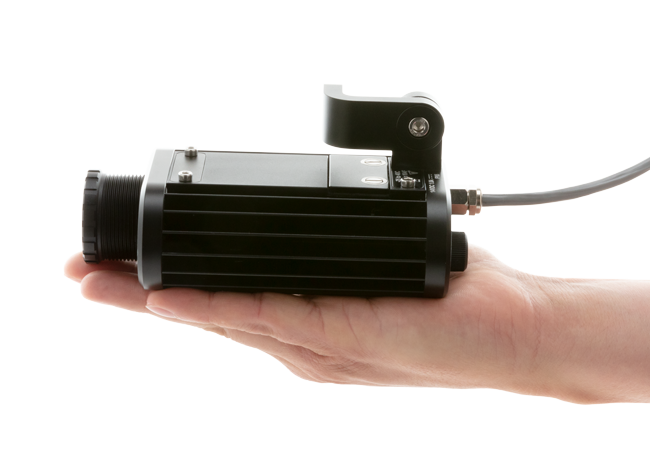

Impressive Light Output From An Ultra-Compact Form Factor

The Image Spot Mini measures in at a mere 4.7in x 3.4in x 1.9in (119mm x 84.2mm x 48mm), yet it’s capable of producing up to 1050 lumens of light output. Many small LED gobo projectors lack brightness, while brighter units need large housings and/or heat-sinks. The unique design of the Image Spot Mini provides an excellent balance of compact size and bright output.

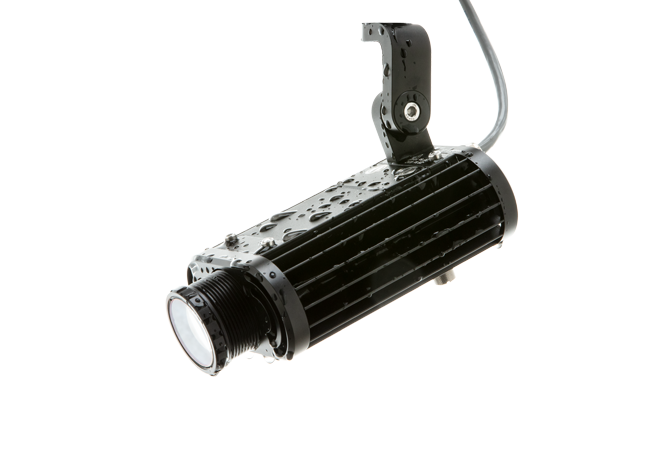

Designed For Use Indoors And Outdoors

Whether it’s inside a museum, outside a restaurant, or a part of a themed attraction, the IP65-rated Image Spot Mini provides the versatility to project gobos everywhere and anywhere they might be required.

What’s In The Box:

1 × Image Spot Mini Projector (3000K or 5500K)

1 × Lens of Your Choice (11°, 17°, or 25°)

1 × Dimmable Driver (Onboard Potentiometer, 0-10V, DMX, or DALI)

Image Spot Mini Projector:

Input Voltage: 14VDC , 1.0A

Power Consumption: 14 Watts at maximum output

Color Temperature Options: 5500K or 3000K

Output:

5500K Model: 400 lumens

3000K Model: 300 lumens

CRI:

3000K Model: 98+

5500K Model: 75+

Lumen Maintenance: 90,000 hours at 50°C (LM80)

Power/Data Connection: 6 ft. (2m) Insulated Cable/Gland (IP65), unterminated (connector not included)

Dimensions: 4.7in x 3.4in x 1.9in (119mm x 84.2mm x 48mm) excluding yoke

Weight: 2.2 lbs (1.0 kg)

Operating Temperature: -13° F to 113° F (-25° C to 45° C)

IP Rating: IP65

Humidity: 0 - 95% non-condensing

Housing: Anodized Aluminum Extrusion

Approvals:

ETL / UL Standards #2108:2015

cETL / CSA C22.2#250.0:2018 Ed.4

Lens Options:

Available beam angles: 11°, 17°, 25°

11° Lens enables the longest projection capability.

Image Diameter = 2.6’ (.8m) @ 16’ (4.8m) distance

17° Lens supports mid-range projections.

Image Diameter = 3.3’ (1m) @ 16’ (4.8m) distance

25° Lens produces the widest beam spread, making it the best for short throws.

Image Diameter = 3.5’ (1.1m) @ 16’ (4.8m) distance

Driver Options:

Power Input: 100-277Vac (277 for North America only)

Output: 10-54Vdc, 200-1200mA

Dimming: 0-10V/Onboard Potentiometer

Dimming Range: 0~100%, .01% dimming depth

PWM Dimming Frequency: ≤3600 Hz

Power Factor: >.95 (115Vac), .90 (230Vac), .85 (277 Vac) – Full Load

Efficiency: >88%

IP Rating: Dry Location Only

Compliance: SELV, cRUus, FCC, CE, RoHS, Class 2

DMX or DALI Drivers are available if needed.

Image Spot Mini Gobos & Permacolor Filters:

For optimum image quality and performance, use Rosco Image Spot Gobos and Permacolor Filters, which feature custom bezels that enable a secure fit inside the Image Spot gobo cassette.

Standard Gobos

XXXXX-MINI Image Spot Mini Standard Gobo, XXXXX = The five digit standard gobo number

Custom Gobos

25072101MINI - Image Spot Mini Custom Steel Gobo

260CUSBWMINI - Image Spot Mini Custom B&W Glass Gobo

260CUS1CMINI - Image Spot Mini Custom One-Color Glass Gobo

260CUS2CMINI - Image Spot Mini Custom Two-Color Glass Gobo

260CUS3CMINI - Image Spot Mini Custom Three-Color Glass Gobo

260CUSMCMINI - Image Spot Mini Custom Multi-Color Glass Gobo

Permacolor Dichroic Filters

1203-XXXX-MINI Image Spot Mini Permacolor Dichroic Glass Filter, XXXX = the four-digit color number (includes bezel to fit inside gobo cassette)
